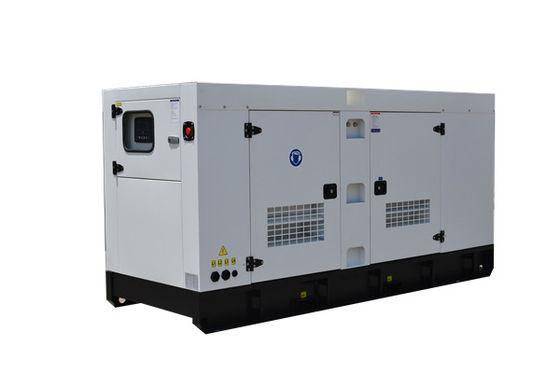

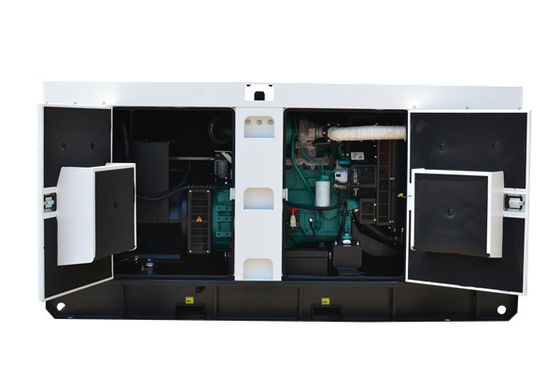

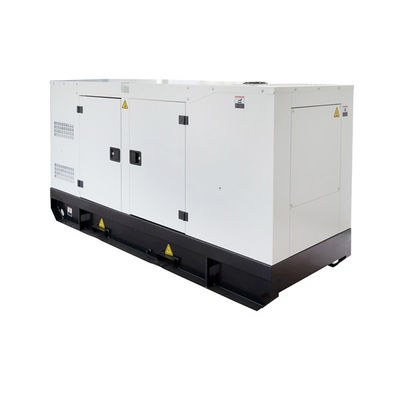

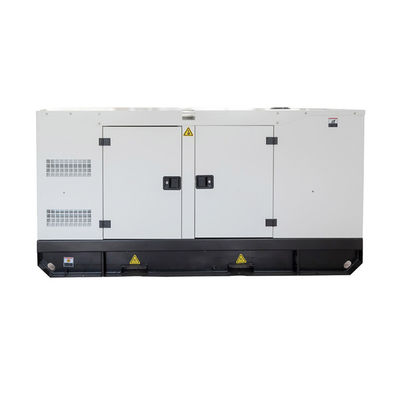

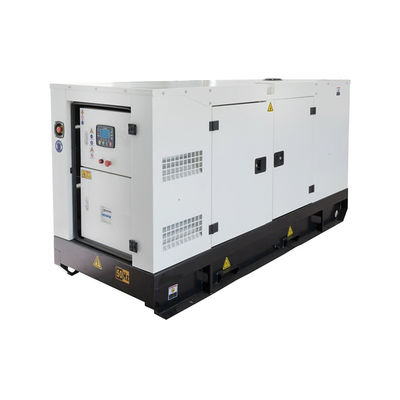

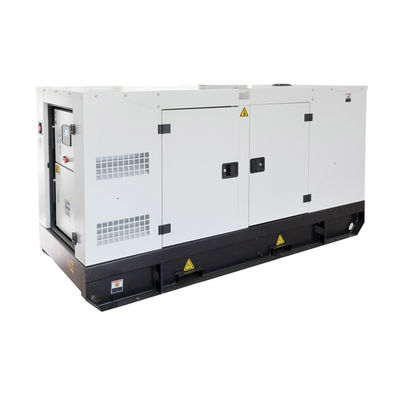

Yangdong 10kVA Professional Diesel Generator 8kw Power Generator Dynamo Open Silent with engine YD380D

1
MOQ
Yangdong 10kVA Professional Diesel Generator 8kw Power Generator Dynamo Open Silent with engine YD380D
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Potenza nominale: 8KW
Potenza nominale: 10kva
Sistema di controllo: Digitale
Capacità del serbatoio: 18L
Fase: 3
Frequenza: 50/60Hz
Tipo: Silenzioso/aperto
Evidenziare:

10kVA diesel generator with YD380D engine

,

8kw silent power generator dynamo

,

professional diesel generator with warranty

Informazioni di base
Luogo di origine: Cina
Marca: YangDong
Numero di modello: YD380D
Termini di pagamento e spedizione
Imballaggi particolari: 115*61*110 cm
Tempi di consegna: 5-8 giorni lavorativi
Termini di pagamento: L/C, T/T
Descrizione di prodotto
Yangdong 10kVA Professional Diesel Generator 8kw Power Generator Dynamo Open Silent with engine YD380D
Product Introduction

We offer various power configurations that can be customized according to your needs. Please feel free to contact us!

Yangdong 10kVA Professional Diesel Generator 8kw Power Generator Dynamo Open Silent with engine YD380D 0

Our 8kW 10kVA diesel generator (Model: YD380D) is designed to provide reliable power for a wide range of applications. Backed by the renowned brand, it offers high-quality performance and long-term durability.

Technical Specifications
General information Prime power Standby power
Rated Power (kVA) 10 11
Power Rating (kW) 8 9
Frequency (Hz) 50
Engine Model YD380D
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated voltage (V) 400/230 (According to customer requirements)
Fuel tank capacity operating time ≥ 8h @ 75% load

PRP ● Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation

ESP ● The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating

Yangdong 10kVA Professional Diesel Generator 8kw Power Generator Dynamo Open Silent with engine YD380D 1
Dimension and Weight
Model BY11 (Open type) BY11S (Silent type)
Length (L) mm 1150 1750
Width (W) mm 610 850
Height (H) mm 1100 1030
Tank capacity (L) 18 18
Engine Specifications
Engine model & manufacturer YD380D (YANGDONG)
Engine Model YD380D
No. of cylinders 3
Injection Type Direct
Configuration Vertical
Aspiration Natural
Cooling system Water-cooled
Bore 80 mm
Stroke 90 mm
Compression ratio 18
Displacement 1.357 L
Dry engine weight 165 kg
Dimension(L*W*H) 587*474*628
The Flywheel shell interface SAE4
Governed Engine Speed 1500
Continuous Power without Fans 10
Standby Power 11
Adaptive power station (kw) 13
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-164B
Alternator Rated Power 8kw/10kva
Rated voltage (V) 230v/400v
Rated frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
Company Profile

Established in 2004, Fujian Bobig Electric Machinery Co., Ltd. is an electrical machinery manufacturer collecting the technological research, production and sale together. With a total factory area of 10,000 square meters, including 1,000sqm standard construction area, we have 160 employees, among which 20 people are technicians.

Our main products include air-cooled gasoline generators, air-cooled diesel generators, air-cooled welding & generating sets and water-cooled diesel generator sets. Especially small air-cooled brushless generators of low distortion and welding & generating sets of reliable quality have won a great reputation in the market.

Adhering to the idea of "Quality, Creation, Service and Development", we keep the aim of updating technology, improving quality and providing better service all the time. We also have kinds of advanced equipment to test our products, such as CAD system, auto assembling & winding & inserting equipment, vacuum dipping system and digital testing equipment.

We always control product quality strictly and our company has obtained ISO9000 Quality System Certification. We warmly welcome you to build sincere cooperation with us.

Yangdong 10kVA Professional Diesel Generator 8kw Power Generator Dynamo Open Silent with engine YD380D 2 Yangdong 10kVA Professional Diesel Generator 8kw Power Generator Dynamo Open Silent with engine YD380D 3
After Sales Services

As a leading Chinese diesel generator manufacturer, we offer comprehensive export services to meet the needs of global markets. Our services include:

  • Customized manufacturing
  • Quality control
  • International logistics
  • Documentation and certification
  • Trade support
  • After-sales service
  • Customer training
  • Market support
  • Technical collaboration

We deliver tailored diesel generator solutions that adhere to international quality standards. Our experienced team handles all aspects of international logistics to ensure timely and secure product delivery.

We provide necessary documentation and certifications compliant with international trade requirements. Our dedicated trade support team assists with contract negotiation and payment arrangements. We offer after-sales support, including remote technical assistance and spare parts supply. Our customer training programs ensure efficient operation and maintenance. We provide market support to enhance brand visibility and collaborate with international partners to drive innovation. With our export services, we aim to be your trusted partner for diesel generator solutions in the global market.

Frequently Asked Questions
1. About Company & Factory
Q: Are you a manufacturer or a trading company?

A: We are a professional manufacturer with our own factory located in Fujian, China. We welcome you to visit our facility and production line to see our quality control processes firsthand.

2. About Minimum Order
Q: What is the minimum order quantity (MOQ)?

A: Our standard MOQ is 1 set. We are flexible and can discuss volume orders for larger projects to provide better pricing.

3. About Delivery Time
Q: What is the lead time after order confirmation?

A: The production lead time varies depending on the order quantity and current inventory status. Typically, it ranges from 15 to 30 days for standard models. We will provide a precise timeline upon receiving your order.

4. About Payment Terms
Q: What payment terms do you offer?

A: We commonly accept T/T (Telegraphic Transfer) with 50% deposit paid upfront and the remaining 50% balance paid before shipment. For established business relationships, we can also discuss other terms like L/C at sight.

5. About Quality Control
Q: Do you perform factory acceptance tests before shipment?

A: Absolutely. Every unit undergoes a rigorous full-load test in our factory.
