Data Center Backup SDEC 6DTAA8.9-G24 180kW 225kVA Diesel Generator

1
MOQ
USD 300-850
prezzo
Data Center Backup SDEC 6DTAA8.9-G24 180kW 225kVA Diesel Generator
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Evidenziare:

SDEC diesel generator 180kW

,

data center backup diesel generator

,

225kVA SDEC generator with warranty
Informazioni di base
Luogo di origine: Cina
Marca: SDEC
Numero di modello: 6DTAA8.9-G24
Termini di pagamento e spedizione
Imballaggi particolari: 355*122*195 cm
Tempi di consegna: 30 giorni di lavoro
Termini di pagamento: L/c, t/t, d/p
Capacità di alimentazione: 500 pezzi al mese
Descrizione di prodotto
SDEC diesel generator set
Product Description

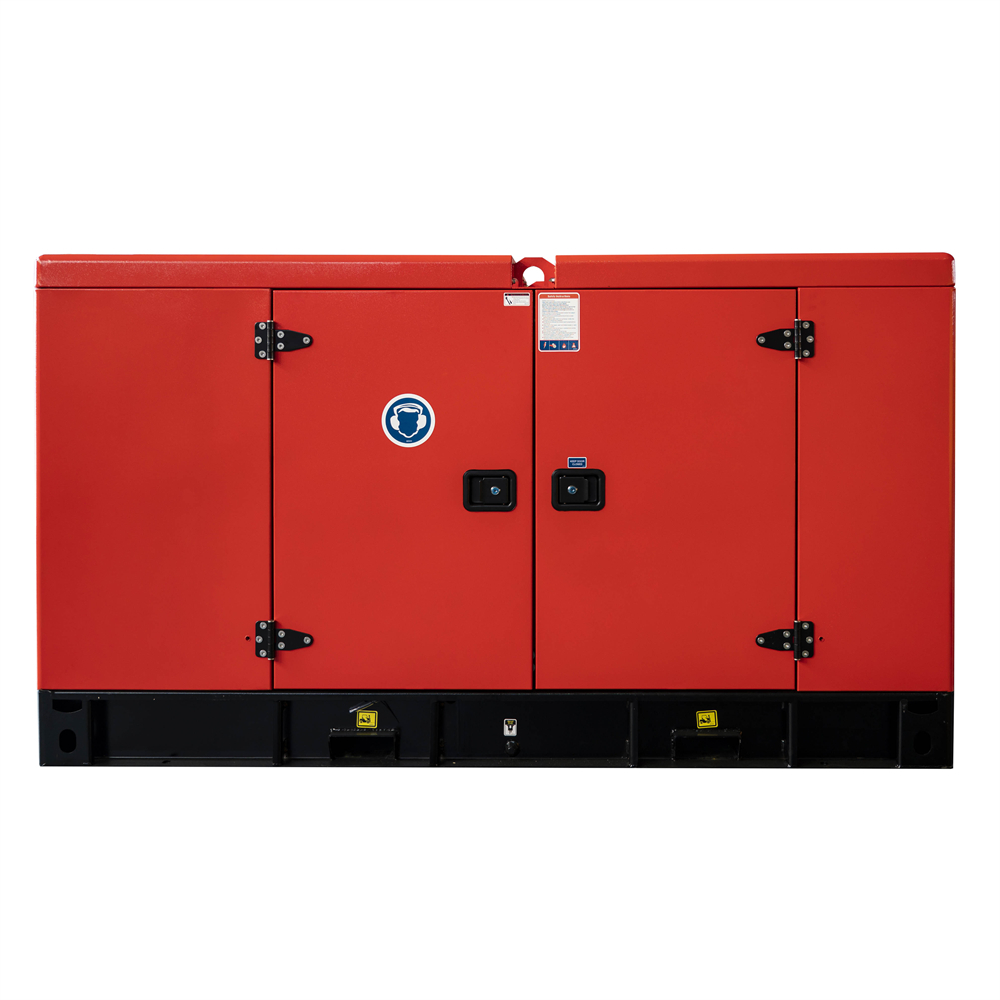

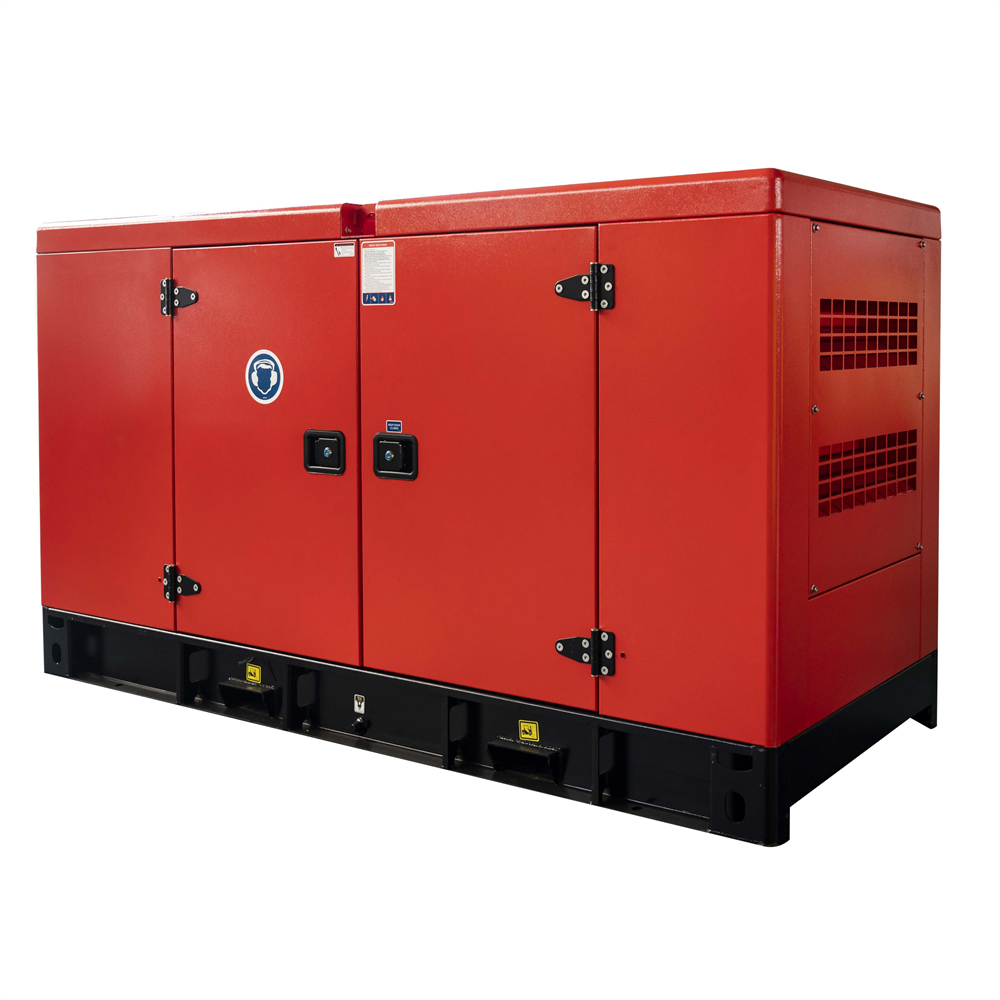

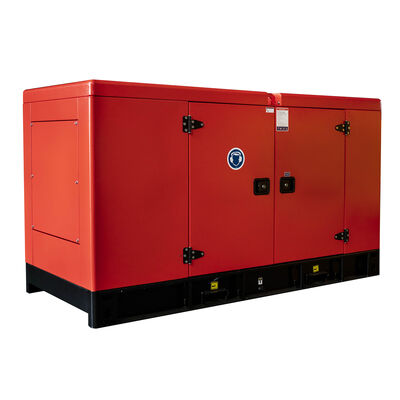

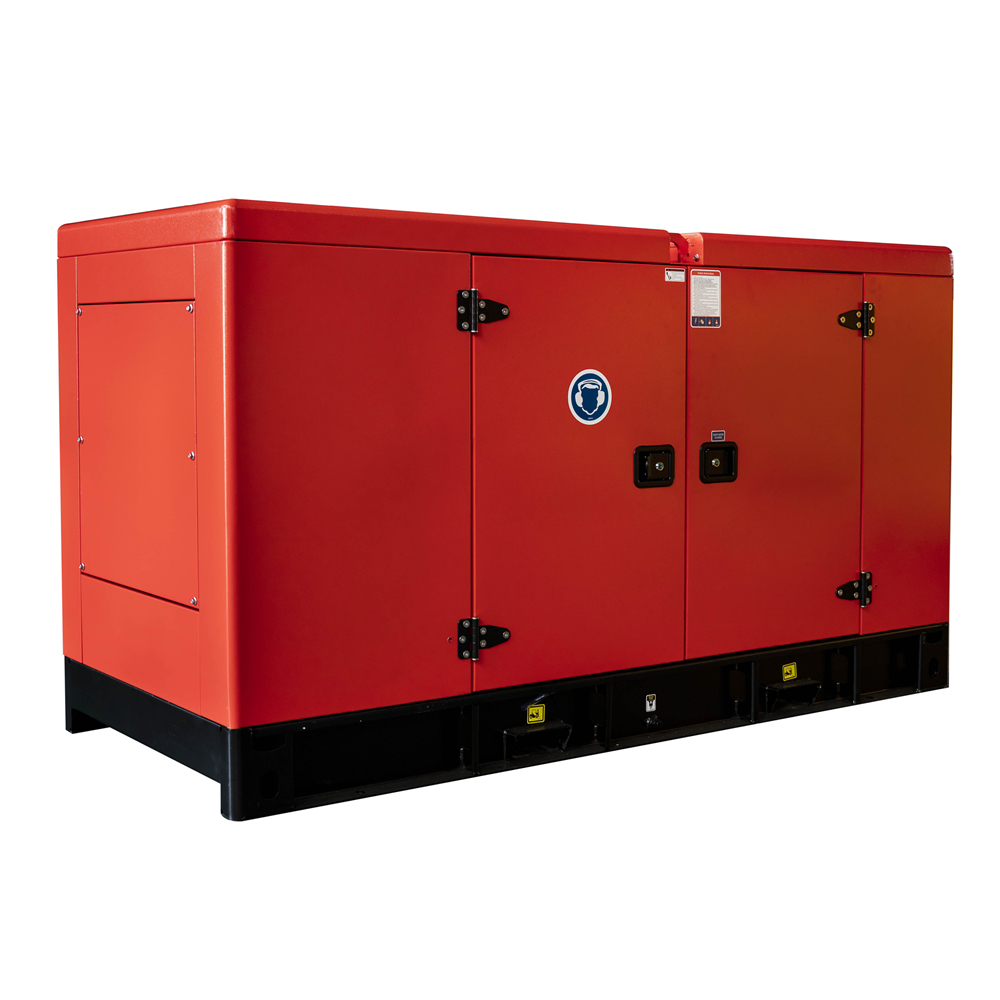

Our SDEC 6DTAA8.9-G21 Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned SDEC engine, this 180kw unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. It is the perfect power source for construction, industrial, commercial, and emergency backup use.



Data Center Backup SDEC 6DTAA8.9-G24 180kW 225kVA Diesel Generator 0Data Center Backup SDEC 6DTAA8.9-G24 180kW 225kVA Diesel Generator 1

General information Prime power Standby power
Rated Power (kVA) 225 248
Power Rating (kW) 180 198
Frequency (Hz) 50
Engine Model 6DTAA8.9-G24
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated voltage (V) 400/230
(According to customer requirements)
Fuel tank capacity operating time ≥ 8h @ 75% load
PRP Prime power is available for an unlimited number of annual hours in variable load application,in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation
ESP The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption.No overload,utility parallel or negotiated outage operation capability is available at this ratin

Dimension and Weight
Model BSD248
Open type		 BSD248S
Silent type
Length (L) mm 2600 3550
Width (W) mm 1000 1220
Height (H) mm 1850 1950
Tank capacity (L) 414 414
Engine Specification



Engine model & manufacturer 6DTAA8.9-G24(SDEC)
Engine Model 6DTAA8.9-G24
Engine Type In-line, 4 strokes, water-cooled; 2 valves, Turbo charged with aftercooler
Combustion type Direct injection
Cylinder Type wet cylinder liner
Number of cylinders 6
Bore × stroke 114 × 144 mm
Displacement 8.82 lit.
Compression ratio 18 : 1
Firing order 1-5-3-6-2-4
fuel injection advance angle 7.5°BTDC
Dry weight 740 kg
Dimension 1422×762×1186mm
Rotation CCW viewed from flywheel
Fly wheel housing SAE 2#
Fly wheel SAE 11.5#(number of teeth: 125)
Injection pump Longkou in-line “P” type
Governor Electric type
Feed pump Mechanical type
Injection nozzle Multi hole type


Alternator Specifica
Alternator
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-274J
Alternator Rated Power 180kw/225kva
Rated voltage (V) 230v/400v
Rated frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%

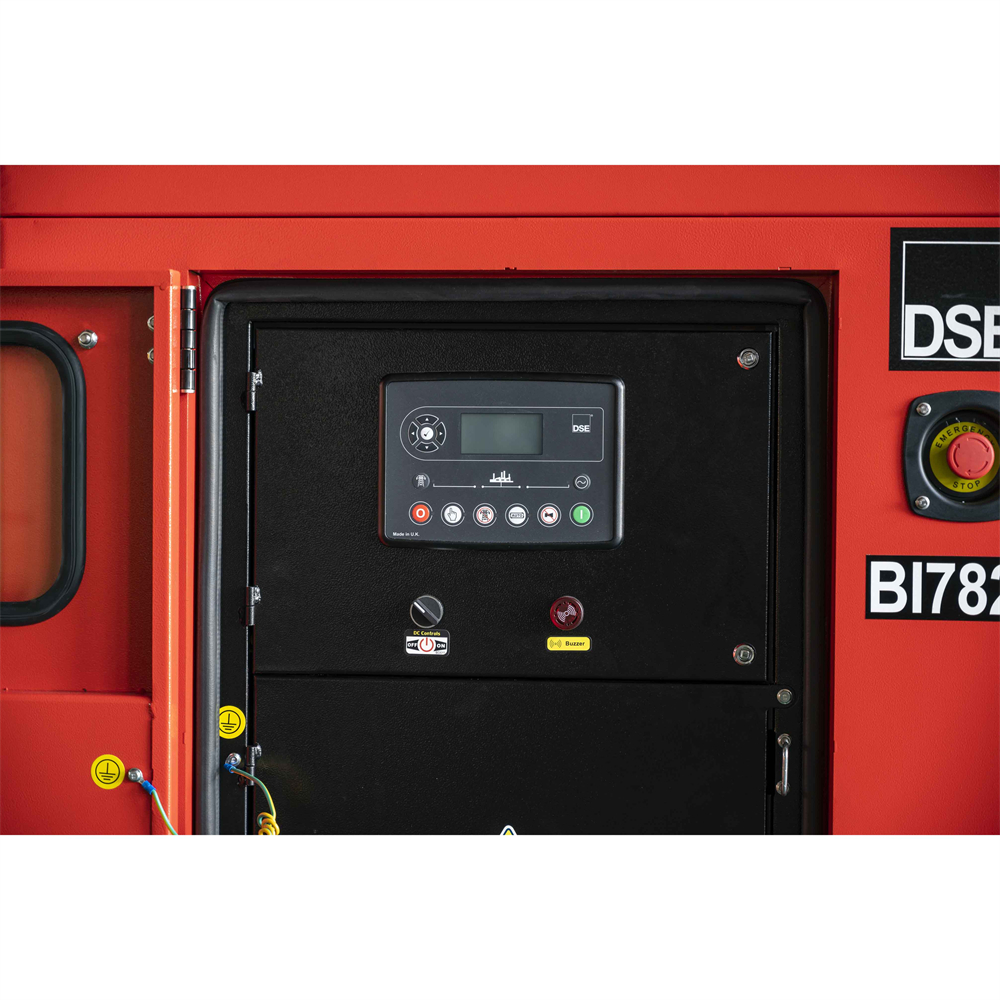

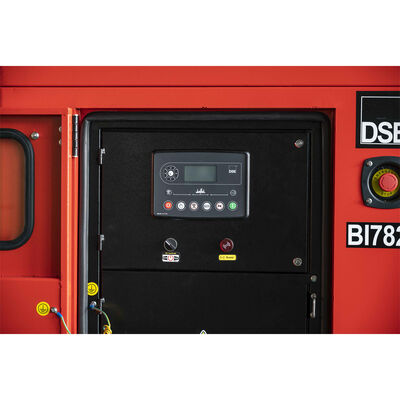

Control Panel



DSE 6120

Auto start and auto mains failure control module(Alternator frequency & can speed sensing)

  Key benefits
•Automatically transfers betweenmains (utility) and generator
(DSE6120 MKIII only) forconvenience.
•Hours counter provides accurateinformation for monitoring andmaintenance periods
•User-friendly set-up and buttonlayout for ease of use
•Multiple parameters are monitored& displayed simultaneously for fullvisibility
•The module can be configured tosuit a wide range of applications foruser flexibility
•PLC editor allows user configurablefunctions to meet user specificapplication requirements.

  Data Center Backup SDEC 6DTAA8.9-G24 180kW 225kVA Diesel Generator 2









Key features
•4-line back-lit LCD text display
•Multiple display languages
•Five-key menu navigation
•LCD alarm indication
•Customisable power-up text andscreen images.
•DSENet® expansion compatibility
•Data logging facility
•Internal PLC editor
•Protections disable feature
•Fully configurable via PC using
USB communications
•Front panel configuration withPIN protection
•Power save mode
•3-phase generator sensing andprotection
•3-phase mains (utility) sensing andprotection (DSE6120 MKIII only)
•Automatic load transfer control(DSE6120 MKIII only)
•Generator current and powermonitoring (kW, kvar, kVA, pf)
•Mains (utility) current and power
monitoring (kW
, kvar, kVA, pf)(DSE6120 MKIII only)
•kW overload alarm
•Over current protection
•Breaker control via fascia buttons



  •Fuel and start outputs configurablewhen using CAN
•6 configurable DC outputs
•4 configurable analogue/digitalinputs
•Support for 0 V to 10 V & 4 mA to20 mA sensors
•8 configurable digital inputs
•CAN, MPU and alternatorfrequency speed sensing in onevariant
•Real time clock
•Manual and automatic fuel pumpcontrol
•Engine pre-heat and post-heatfunctions
•Engine run-time scheduler
•Engine idle control for starting &stopping
•Fuel level alarms
•3 configurable maintenance alarms
•Compatible with a wide range ofCAN engines, including Tier 4engine support
•Uses DSE Configuration Suite PC
Softwar
e for simplifiedconfiguration
•Licence-free PC software
•IP65 rating (with optional gasket)offers increased resistance to wateringress
•Configurable CAN read &transmitted information.
•1 alternative configuration





















Options



Engine Alternator Fuel System Generating Set
Water Jacket Preheater
Oil Preheater
Oil manual pump		 PMG excitation
Space heater
inding temperature
measuring		 12 / 24 hour base tank
Bunded fuel tank
External fuel tank
Automatic fuel feeding
Switch between external tank
and base tank (three-way valve)		 Deepsea, ComAp, Smartgen
etc. controller
Trailer
Tools with the machine

Data Center Backup SDEC 6DTAA8.9-G24 180kW 225kVA Diesel Generator 3Data Center Backup SDEC 6DTAA8.9-G24 180kW 225kVA Diesel Generator 4
