YUCHAI Intelligent diesel Generator 720kW 900KVA Open Type Silent diesel Electric Power Make Generator 720kw

YUCHAI Intelligent diesel Generator 720kW 900KVA Open Type Silent diesel Electric Power Make Generator 720kw
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Baldacchino: Personalizzato
Garanzia: 12 mesi/1000 ore
Tipo: Silenzioso (super silenzioso) o aperto, silenzioso, ecc., in linea/6 cilindri/4 tempi/4 valvole/19 l
Pannello di controllo: Display digitale LCD, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen
Tipo di uscita: CA monofase/trifase
Controllore: Deepsea/Smartgen/ecc
applicazione: Indursty Bank ecc
Tensione nominale: 400/230 V, 110-480 V, 220 V/380 V, 110 V/240 V, 380 V
Alternatore: Maratona, Stamford, SLG/Stamford/Maratona/Meccatle/Leroy-somer, Stamford o Newtec, Engga
Nome del prodotto: Generatore diesel, generatore 900 KVA, alimentato dal generatore diesel YUCHAI, generatore diesel di
Colore: Requisito dei clienti
Frequenza: 50/60Hz
Potenza nominale: 900kVA
Motore: Yuchai originale
metodo di raffreddamento: Sistema di raffreddamento ad acqua
Evidenziare:

YUCHAI silent diesel generator 720kW

,

900KVA open type power generator

,

diesel electric generator with warranty
Informazioni di base
Luogo di origine: Cina
Marca: YUCHAI
Certificazione: CE
Numero di modello: YCTH281220-G31
Termini di pagamento e spedizione
Imballaggi particolari: compensato
Tempi di consegna: 30 giorni
Capacità di alimentazione: 500 pezzi al mese
Descrizione di prodotto
YUCHAI Intelligent Diesel Generator 720kW 900KVA
Our 160kW 200KVA BOBIG PERKINS diesel generator (Model: 1106A-70TAG4) is designed to provide reliable power for a wide range of applications. Backed by the renowned PERKINS brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance
Rated Power: 160kW (200KVA) - meets power needs for various industrial, commercial, and residential applications
Frequency: 50Hz standard frequency suitable for most electrical equipment
Prime Power: Stable and efficient output ensuring continuous operation under heavy loads
Engine Excellence
Engine Model: 1106A-70TAG4 PERKINS engine with advanced technology
Engine Speed: 1500 RPM for smooth and consistent power supply
Features: High torque, fuel efficiency, and low emissions
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 200 220
Power Rating (kW) 160 176
Frequency (Hz) 50
Engine Model 1106A-70TAG4
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
Dimensions and Weight
Model BP220 (Open Type) BP220S (Silent Type)
Length (mm) 2450 3250
Width (mm) 820 1040
Height (mm) 1550 1500
Tank Capacity (L) 368 368
Engine Details
Engine Model & Manufacturer 1106A-70TAG4 (PERKINS)
Number of Cylinders 6
Cylinder Arrangement Vertical inline
Cycle Four stroke
Aspiration Turbocharged and air charge cooled
Bore x Stroke 105 x 135 mm
Cubic Capacity 7.01 L
Compression Ratio 16.0:1
Prime Power/Speed 173.9 kW/1500 rpm
Standby Power/Speed 191.3 kW/1500 rpm
Cooling System Force Water Cooling Cycle
Total Lubrication System Capacity 12.5 L
Coolant Capacity (engine only) 18.0 L
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-274H
Alternator Rated Power 160kw/200kva
Rated Voltage 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Customization Services: We support customization and OEM services with design drawings. All units are equipped with original power supplies and come with standard DSE 6120 controller (engine, generator, and controller are optional).
Applications
  • Industrial Use: Backup power source for factories ensuring continuous production during power outages
  • Commercial Buildings: Office buildings, shopping malls, and hotels for essential services like lighting, elevators, and security systems
  • Residential Areas: Reliable power for communities in areas with unstable power grids
Environmental Standards
Our generator complies with international standards including ISO 8528-5:2018, GB/T2820.5-2009, and CE certifications.
Warranty & Service
BOBIG products come with a one-year or 1000-hour warranty (whichever comes first). Professional after-sales service team available 24/7 for technical support, maintenance, and repairs.
Product Images

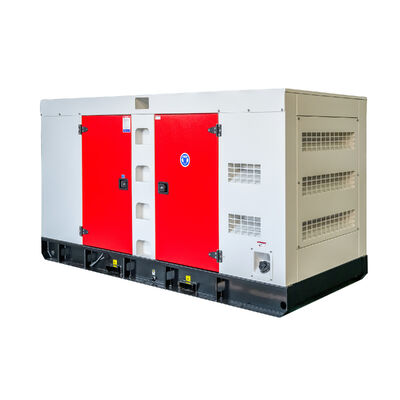

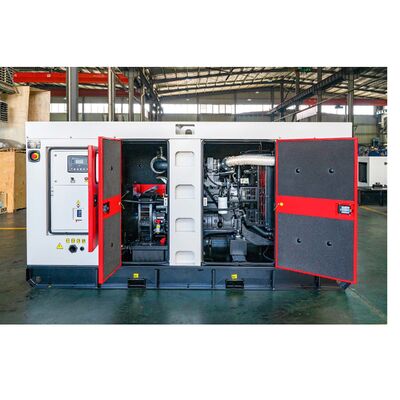

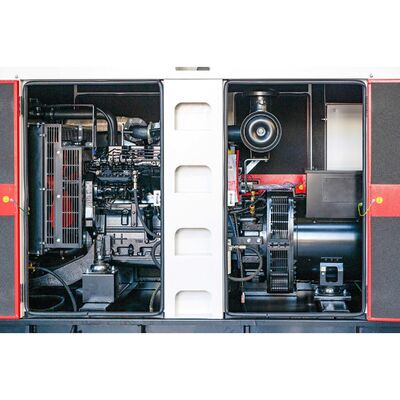

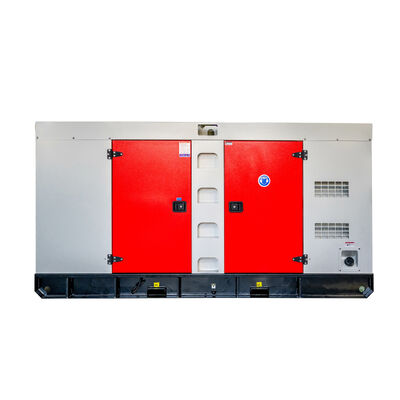

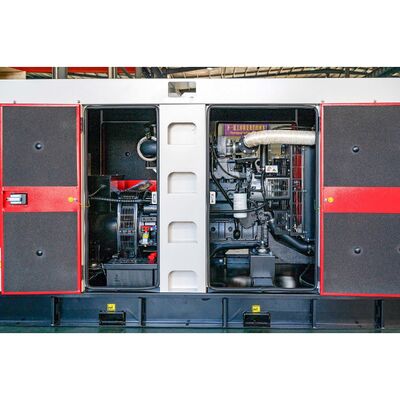

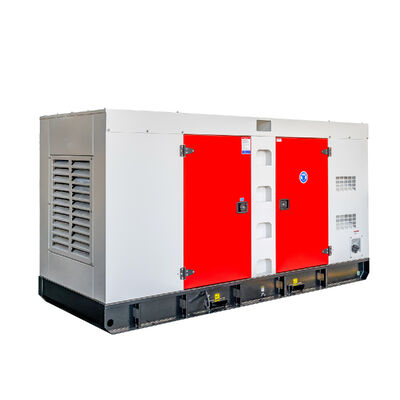

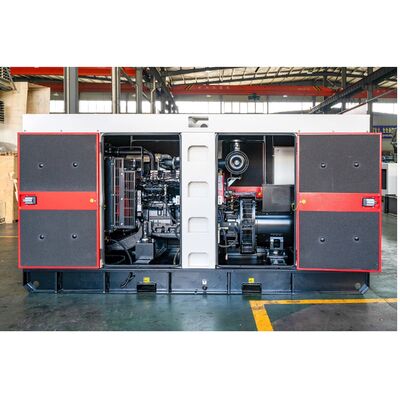

YUCHAI Intelligent diesel Generator 720kW 900KVA Open Type Silent diesel Electric Power Make Generator 720kw 0 YUCHAI Intelligent diesel Generator 720kW 900KVA Open Type Silent diesel Electric Power Make Generator 720kw 1 YUCHAI Intelligent diesel Generator 720kW 900KVA Open Type Silent diesel Electric Power Make Generator 720kw 2
