Super Silent Diesel Generator 45Kw for Outdoor Use with Auto Start 50Hz ATS and Spare Parts

1
MOQ
USD 3500-5500
prezzo
Super Silent Diesel Generator 45Kw for Outdoor Use with Auto Start 50Hz ATS and Spare Parts
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Evidenziare:

45Kw silent diesel generator

,

auto start diesel generator 50Hz

,

outdoor diesel generator with ATS
Informazioni di base
Luogo di origine: Cina
Marca: YANGDONG
Numero di modello: YANGDONG Y4105ZLD
Termini di pagamento e spedizione
Imballaggi particolari: 245*88*120 cm
Tempi di consegna: 30 GIORNI LAVORATIVI
Termini di pagamento: L/C, T/T, D/P
Capacità di alimentazione: 500 pezzi al mese
Descrizione di prodotto
Super Silent Diesel Generator 45Kw for Outdoor Use with Auto Start 50Hz ATS and Spare Parts

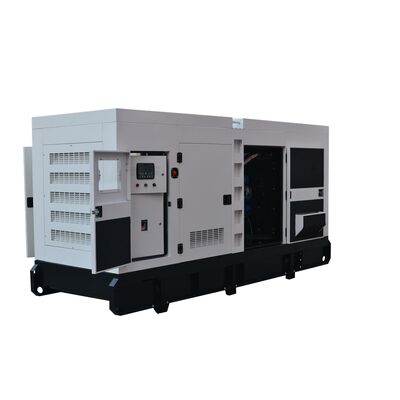

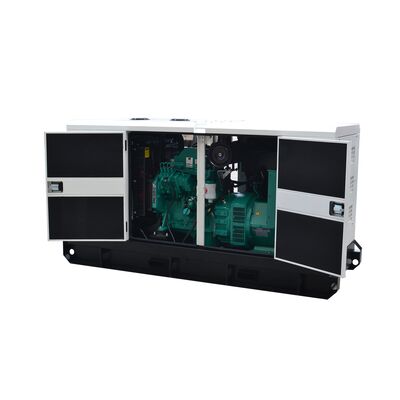

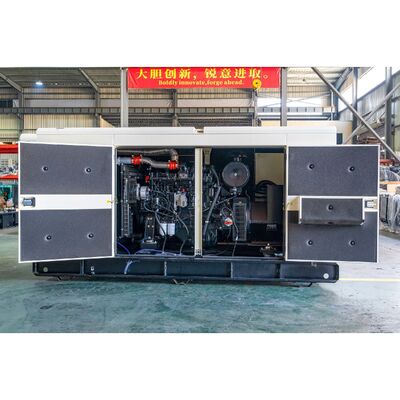

Our YANGDONG Y4105ZLD Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned YANGDONG engine, this 45kw unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. It is the perfect power source for construction, industrial, commercial, and emergency backup use.
Super Silent Diesel Generator 45Kw for Outdoor Use with Auto Start 50Hz ATS and Spare Parts 0 Super Silent Diesel Generator 45Kw for Outdoor Use with Auto Start 50Hz ATS and Spare Parts 1
General Specifications
Specification Prime Power Standby Power
Rated Power (kVA) 56 62
Power Rating (kW) 45 50
Frequency (Hz) 50
Engine Model Y4105ZLD
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP Prime Power: Available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97. A 10% overload capability is available for a period of 1 hour within a 12-hour operation period.
ESP Standby Power: Applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Dimensions and Weight
Model BY62 (Open Type) BY62S (Silent Type)
Length (L) mm 1850 2450
Width (W) mm 730 880
Height (H) mm 1350 1200
Tank Capacity (L) 104 104
Engine Specifications
Engine Model & Manufacturer Y4105ZLD (YANGDONG)
Number of Cylinders 4
Injection Type Direct
Aspiration Turbocharged
Configuration Vertical
Bore 105 mm
Stroke 118 mm
Compression Ratio 18
Displacement 4.087 L
Dry Engine Weight 350 kg
Dimension (L*W*H) 892*618*740
The Flywheel Shell Interface SAE3
Governed Engine Speed 1500
Continuous Power without Fans 55
Standby Power 61
Number of Flywheel Teeth 119
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-224E
Alternator Rated Power 45kw/56kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
Control Panel - DSE 6120
Auto start and auto mains failure control module (Alternator frequency & can speed sensing)
Key Benefits
  • Automatically transfers between mains (utility) and generator (DSE6120 MKIII only) for convenience
  • Hours counter provides accurate information for monitoring and maintenance periods
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters are monitored & displayed simultaneously for full visibility
  • The module can be configured to suit a wide range of applications for user flexibility
  • PLC editor allows user configurable functions to meet user specific application requirements
Key Features
  • 4-line back-lit LCD text display
  • Multiple display languages
  • Five-key menu navigation
  • LCD alarm indication
  • Customisable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility
  • Internal PLC editor
  • Protections disable feature
  • Fully configurable via PC using USB communications
  • Front panel configuration with PIN protection
  • Power save mode
  • 3-phase generator sensing and protection
  • 3-phase mains (utility) sensing and protection (DSE6120 MKIII only)
  • Automatic load transfer control (DSE6120 MKIII only)
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • Mains (utility) current and power monitoring (kW, kvar, kVA, pf) (DSE6120 MKIII only)
  • kW overload alarm
  • Over current protection
  • Breaker control via fascia buttons
  • Fuel and start outputs configurable when using CAN
  • 6 configurable DC outputs
  • 4 configurable analogue/digital inputs
  • Support for 0 V to 10 V & 4 mA to 20 mA sensors
  • 8 configurable digital inputs
  • CAN, MPU and alternator frequency speed sensing in one variant
  • Real time clock
  • Manual and automatic fuel pump control
  • Engine pre-heat and post-heat functions
  • Engine run-time scheduler
  • Engine idle control for starting & stopping
  • Fuel level alarms
  • 3 configurable maintenance alarms
  • Compatible with a wide range of CAN engines, including Tier 4 engine support
  • Uses DSE Configuration Suite PC Software for simplified configuration
  • Licence-free PC software
  • IP65 rating (with optional gasket) offers increased resistance to water ingress
  • Configurable CAN read & transmitted information
  • 1 alternative configuration
Super Silent Diesel Generator 45Kw for Outdoor Use with Auto Start 50Hz ATS and Spare Parts 2
Available Options
Engine Alternator Fuel System Generating Set
Water Jacket Preheater PMG excitation 12 / 24 hour base tank Deepsea, ComAp, Smartgen etc. controller
Oil Preheater Space heater Bunded fuel tank Trailer
Oil manual pump Winding temperature measuring External fuel tank Tools with the machine
Automatic fuel feeding
Switch between external tank and base tank (three-way valve)
Super Silent Diesel Generator 45Kw for Outdoor Use with Auto Start 50Hz ATS and Spare Parts 3 Super Silent Diesel Generator 45Kw for Outdoor Use with Auto Start 50Hz ATS and Spare Parts 4 Super Silent Diesel Generator 45Kw for Outdoor Use with Auto Start 50Hz ATS and Spare Parts 5 Super Silent Diesel Generator 45Kw for Outdoor Use with Auto Start 50Hz ATS and Spare Parts 6
