Name: Super Silent Diesel Generator Set Powerd by 200kW 250KVA Water Cooled 3 Phase Power Genset for Sale Engine cummin
Brand: FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
SKU: Nt855-Ga
Price: 15,800.00 USD
Availability: InStock

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Baldacchino: Personalizzato

Garanzia: 12 mesi/1000 ore

tipo: Silenzioso (super silenzioso) o aperto, silenzioso, ecc., in linea/6 cilindri/4 tempi/4 valvole/19 l

Pannello di controllo: Display digitale LCD, Deepsea, ComAp, Deepsea / ComAp / Harsen / Smartgen 6110, Smartgen

Tipo di uscita: CA monofase/trifase

Controllore: Deepsea/Smartgen/ecc

Applicazione: Indursty Bank ecc

Tensione nominale: 400/230 V, 110-480 V, 220 V/380 V, 110 V/240 V, 380 V

Alternatore: Maratona, Stamford, SLG/Stamford/Maratona/Meccatle/Leroy-somer, Stamford o Newtec, Engga

Nome del prodotto: Generatore diesel, generatore 200 kW, alimentato dal generatore diesel CUMMIN S, generatore diesel d

Colore: Requisito dei clienti

Frequenza: 50/60 Hz

Potenza nominale: 200KW

Motore: CUMMIN S originale

metodo di raffreddamento: Sistema di raffreddamento ad acqua

Evidenziare:

200kW silent diesel generator

250KVA water cooled genset

Cummins 3 phase power generator

Informazioni di base

Luogo di origine: Cina

Marca: CUMMIN S

Certificazione: CE

Numero di modello: Nt855-Ga

Termini di pagamento e spedizione

Imballaggi particolari: Avvolgimento a bolle

Tempi di consegna: 30 giorni

Capacità di alimentazione: 500 pezzi al mese

Galleria

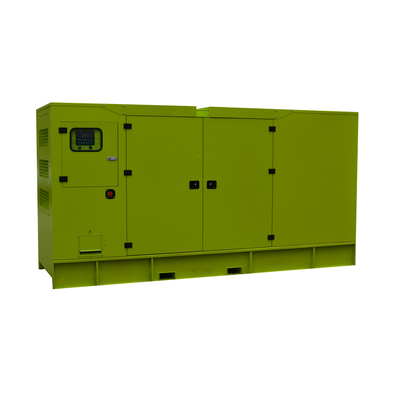

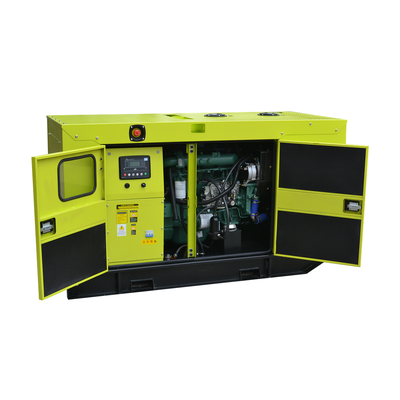

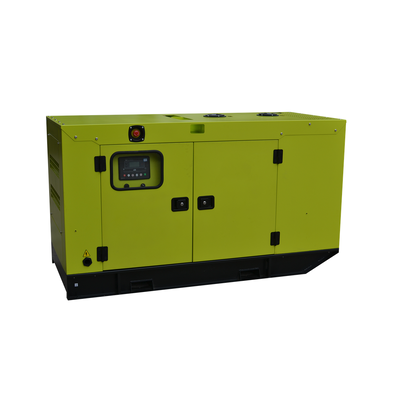

Super Silent Diesel Generator Set Powerd by 200kW 250KVA Water Cooled 3 Phase Power Genset for Sale Engine cummin

Descrizione di prodotto

200kW 250KVA BOBIG CUMMIN S Diesel Generator Set

Model: NT855-GA - Reliable Power Solution

Product Overview

Our 200kW 250KVA BOBIG CUMMIN S diesel generator (Model: NT855-GA) is engineered to deliver reliable power for diverse applications. Backed by the renowned CUMMIN S brand, it offers superior performance and long-term durability.

Key Features

Power Performance

Rated Power: 200kW (250KVA) for industrial, commercial, and residential applications
Prime Power: Stable and efficient output ensuring continuous operation under heavy loads
Frequency: Standard 50Hz operation suitable for most electrical equipment

Engine Excellence

Engine Model: NT855-GA CUMMIN S engine with advanced technology
Performance: High torque, fuel efficiency, and low emissions
Engine Speed: 1500 RPM for smooth, consistent power supply

Technical Specifications

General Information

Specification	Prime Power	Standby Power
Rated Power (kVA)	250	275
Power Rating (kW)	200	220
Frequency (Hz)	50
Engine Model	NT855-GA
Engine Speed (RPM)	1500
Phase	3
PF	0.8
Control System	Digital
Rated Voltage (V)	400/230 (Customizable)
Fuel Tank Capacity Operating Time	≥ 8h @ 75% load

Dimensions and Weight

Model Type	BC275 (Open)	BC275S (Silent)
Length (mm)	3050	4200
Width (mm)	1140	1400
Height (mm)	1880	2120
Tank Capacity (L)	460	460

Engine Specifications

Engine Model & Manufacturer	NT855-GA (Cummin s)
Number of Cylinders	6
Cylinder Arrangement	In-line
Cycle	Four stroke
Aspiration	Turbocharged
Bore x Stroke	140 x 152 mm
Displacement	14 L
Compression Ratio	15.0:1
Prime Power/Speed	231 kW/1500 rpm
Standby Power/Speed	257 kW/1500 rpm
Speed Governor	PT
Cooling System	Force Water Cooling Cycle
Total Lubrication System Capacity	36 L
Coolant Capacity (engine only)	20.8 L
Fuel Consumption @ 100% load	192 g/kWh @1500 rpm

Alternator Specifications

Alternator Brand	BOBIG
Alternator Manufacturer	FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model	BW-274K
Alternator Rated Power	200kw/250kva
Rated Voltage	230v/400v
Rated Frequency	50hz
Connecting Type	3 Phase and 4 W
Number of Bearing	1
Protection Grade	IP23
Altitude	≤1000m
Exciter Type	Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class	H class
Voltage Regulation, Steady State	≤±1%

Environmental Adaptability

Ambient Temperature: Operational range of +5°C to +40°C
Altitude: Suitable for use up to 1000m (custom solutions available for different conditions)

Compliance Standards

Our generator complies with international standards including ISO 8528-5:2018, GB/T2820.5-2009, and CE certification, ensuring quality, safety, and reliability.

Applications

This diesel generator is ideal for various applications:

Industrial Use: Backup power for factories ensuring continuous production during outages
Commercial Buildings: Power for office buildings, shopping malls, and hotels
Residential Areas: Reliable power for communities with unstable power grids

Customization & Services

Customization and OEM services available with design drawings
Standard DSE 6120 controller included (engine, generator, and controller options available)
One-year or 1000-hour warranty (whichever comes first)
24/7 technical support, maintenance, and repair services

Product Image

Certifications

Why Choose BOBIG

Brand Reputation: CUMMIN S is a trusted brand with long-standing quality heritage
Quality Assurance: Strict adherence to international standards with rigorous inspections
Customization Options: Tailored solutions based on specific requirements
Comprehensive Support: Professional after-sales service and technical assistance
