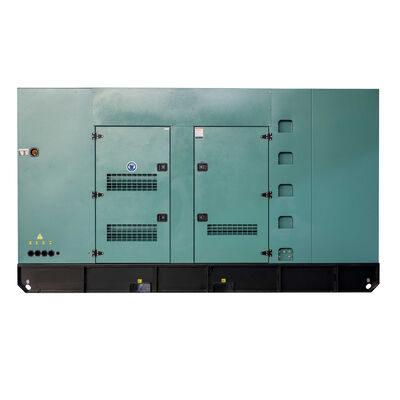

Chinese Top Factory Perkings Silent Diesel Generators Set 36kW 45kva Standby Electric Soundproof Generator ATS Option Rated 230v/400v

Chinese Top Factory Perkings Silent Diesel Generators Set 36kW 45kva Standby Electric Soundproof Generator ATS Option Rated 230v/400v
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Baldacchino: Personalizzato
Garanzia: 12 ore Months/1000
Tipo: Silenzioso (silenzioso eccellente) o aperto, silenzioso, ecc, In-line/6-Cylinder/4-Stroke/4-Valve/19
Pannello di controllo: Visualizzatore digitale LCD, di alto mare, ComAp, di alto mare/ComAp/Harsen/Smartgen 6110, Smartgen
Tipo di uscita: CA singolo/trifase
Controllore: Di alto mare/Smartgen/ecc
Applicazione: Banca ecc di Indursty
Tensione nominale: 400/230V, 110-480V, 220V/380V, 110V/240V, 380V
ALTERNATORE: Maratona, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford o Newtec, Engga
Nome del prodotto: Generatori diesel PERKINS 45kva 36kW personalizzabili, per uso domestico, uso industriale, uso osped
Colore: Requisito dei clienti
Frequenza: 50/60Hz
Potenza nominale: 45KVA
Motore: Perkins originale
Metodo di raffreddamento: Sistema di raffreddamento ad acqua
Evidenziare:

Perkins silent diesel generator 36kW

,

soundproof diesel generator with ATS

,

Perkins standby generator 230v/400v
Informazioni di base
Luogo di origine: Cina
Marca: PERKINS
Certificazione: CE
Numero di modello: 1103A-33TG1 (Regno Unito)
Termini di pagamento e spedizione
Imballaggi particolari: Compensato
Tempi di consegna: 30 giorni
Capacità di alimentazione: 500 pezzi al mese
Descrizione di prodotto

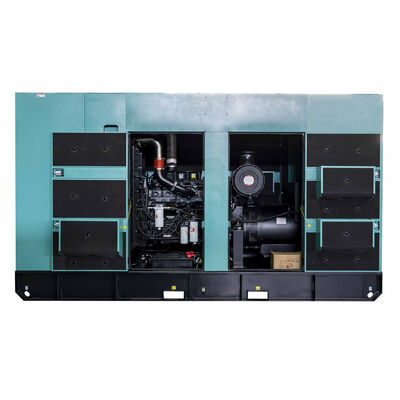

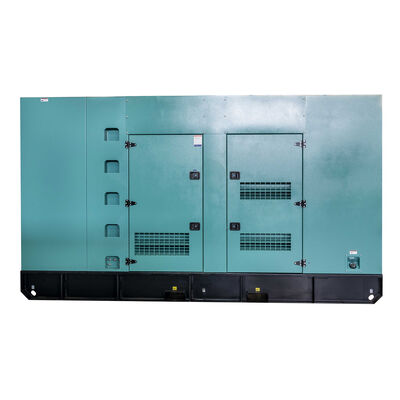

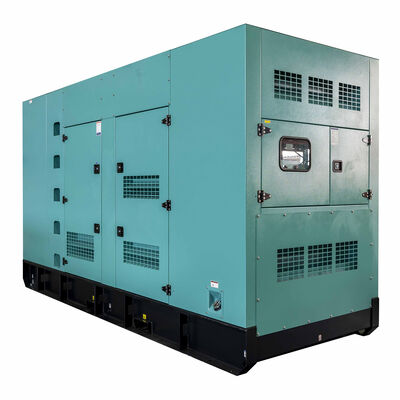

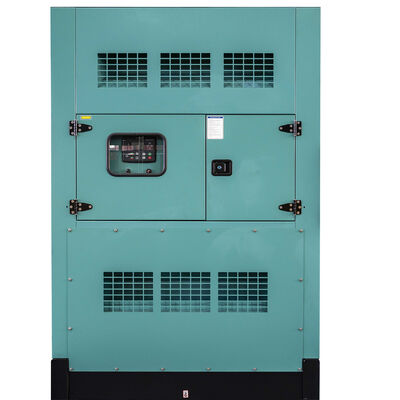

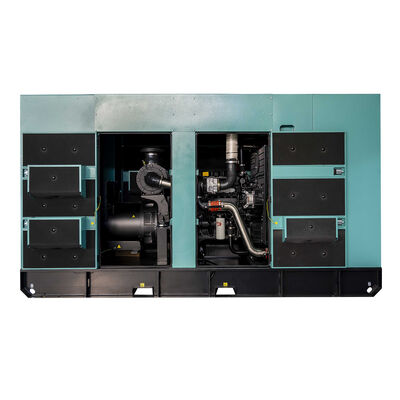

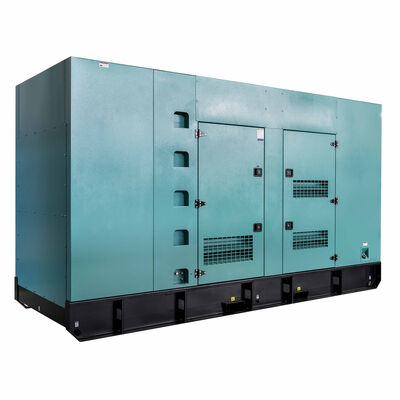

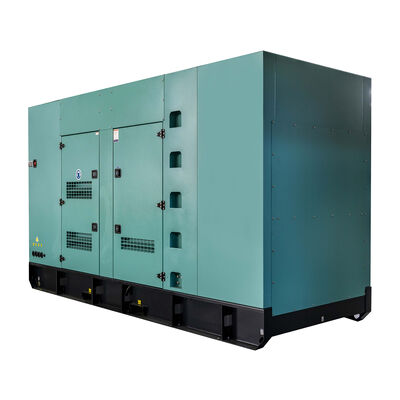

36kW 45KVA BOBIG PERKINS Diesel Generator Set
Our 36kW 45KVA BOBIG PERKINS diesel generator (Model: 1103A-33TG1 (UK)) is designed to provide reliable power for a wide range of applications. Backed by the renowned PERKINS brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance
Rated Power: 36kW (45KVA) - meets power needs for various industrial, commercial, and residential applications
Frequency: 50Hz standard frequency suitable for most electrical equipment
Engine Excellence
Engine Model: 1103A-33TG1 (UK) PERKINS engine with high torque, fuel efficiency, and low emissions
Engine Speed: 1500 RPM for smooth, consistent power supply
Technical Specifications
General Information
Specification Prime Power Standby Power
Rated Power (kVA) 45 50
Power Rating (kW) 36 40
Frequency (Hz) 50
Engine Model 1103A-33TG1
Engine Speed (RPM) 1500
Phase 3
PF 0.8

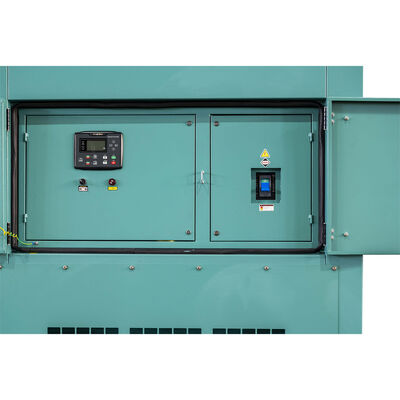

Control System Digital
Rated Voltage (V) 400/230 (customizable)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP: Prime power available for unlimited annual hours in variable load applications with 10% overload capability for 1 hour within 12-hour operation
ESP: Standby power rating for emergency power supply during utility interruptions
Dimensions and Weight
Model Type BP50 (Open) BP50S (Silent)
Length (mm) 1600 2000
Width (mm) 700 930
Height (mm) 1200 1250
Tank Capacity (L) 83 83
Engine Details
Engine Model & Manufacturer 1103A-33TG1 (PERKINS)
Number of Cylinders 3
Cylinder Arrangement Vertical inline
Cycle Four stroke
Aspiration Turbocharged
Bore x Stroke 105 x 127 mm
Cubic Capacity 3.3 L
Compression Ratio 17.25:1
Governor Type Mechanical
Cooling System Force Water Cooling Cycle
Total Lubrication System Capacity 8.3 L
Coolant Capacity (engine only) 11.8 L
Fuel Consumption @ 100% load 207 g/kWh @1500 rpm
Starter Motor DC 24V
Charge Alternator DC 24V
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-224C
Alternator Rated Power 36kw/45kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
Applications
  • Industrial Use: Backup power source for factories to ensure continuous production during outages
  • Commercial Buildings: Power for office buildings, shopping malls, and hotels to maintain essential services
  • Residential Areas: Reliable power for communities with unstable power grids
Warranty and Service
BOBIG products come with a one-year or 1000-hour warranty (whichever comes first) from ex-factory date. During warranty, we provide free replacement of easy-damageable spare parts caused by production or material quality issues. Professional after-sales service team available 24/7 for technical support and maintenance.
Packaging & Shipping
Plywood case packaging. Delivery within 10-15 working days after receiving customer deposit.
Company Information
We are an electrical machinery manufacturer specializing in technological research, production, and sales. With a total factory area of 10,000 square meters and 160 employees (including 20 technicians), we produce gasoline generators, diesel generators (5-2000kva), gas generators, pumps, and more. Our company holds ISO9000 Quality System Certification.
