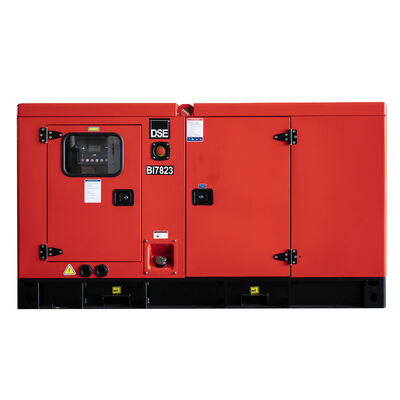

LOW NOISE PRICE WATER COOLING SILENT DIESEL GENERATORS SET BAUDOUIN ENGINE GENSET AVAILABLE 264KW 330KVA POWER GENERATOR

LOW NOISE PRICE WATER COOLING SILENT DIESEL GENERATORS SET BAUDOUIN ENGINE GENSET AVAILABLE 264KW 330KVA POWER GENERATOR
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Baldacchino: Personalizzato
Garanzia: 12 ore Months/1000
Tipo: Silenzioso (silenzioso eccellente) o aperto, silenzioso, ecc, In-line/6-Cylinder/4-Stroke/4-Valve/19
Pannello di controllo: Visualizzatore digitale LCD, di alto mare, ComAp, di alto mare/ComAp/Harsen/Smartgen 6110, Smartgen
Tipo di uscita: CA singolo/trifase
Controllore: Di alto mare/Smartgen/ecc
Applicazione: Banca ecc di Indursty
Tensione nominale: 400/230V, 110-480V, 220V/380V, 110V/240V, 380V
Alternatore: Maratona, Stamford, SLG/Stamford/Marathon/Meccatle/Leroy-somer, Stamford o Newtec, Engga
Nome del prodotto: Generatore diesel, generatore 264KW, alimentato dal generatore diesel YUCHAI, generatore diesel di p
colore: Requisito dei clienti
Frequenza: 50/60Hz
Potenza nominale: 330 KVA
MOTORE: Yuchai originale
Metodo di raffreddamento: Sistema di raffreddamento ad acqua
Evidenziare:

Baudouin silent diesel generator

,

low noise water cooling genset

,

330kVA power generator with warranty
Informazioni di base
Luogo di origine: Cina
Marca: BAUDOUIN
Certificazione: CE
Numero di modello: 6M16G350/5
Termini di pagamento e spedizione
Imballaggi particolari: Compensato
Tempi di consegna: 30 giorni
Capacità di alimentazione: 500 pezzi al mese
Descrizione di prodotto
264kW 330KVA BOBIG BAUDOUIN Diesel Generator (Model: 6M16G350/5)
Our 264kW 330KVA BOBIG BAUDOUIN diesel generator (Model: 6M16G350/5) is designed to provide reliable power for a wide range of applications. Backed by the renowned BAUDOUIN brand, it offers high-quality performance and long-term durability.
Key Features
Power Performance
Rated Power: 264kW (330KVA) with stable and efficient prime power output. Frequency: 50Hz standard operation suitable for most electrical equipment.
Engine Excellence
Powered by the 6M16G350/5 BAUDOUIN engine with high torque, fuel efficiency, and low emissions. Engine Speed: 1500 RPM for smooth and consistent power supply.
Technical Specifications
General Information
Parameter Prime Power Standby Power
Rated Power (kVA) 330 363
Power Rating (kW) 264 290
Frequency (Hz) 50
Engine Model 6M16G350/5
Engine Speed (RPM) 1500
Phase 3
PF 0.8

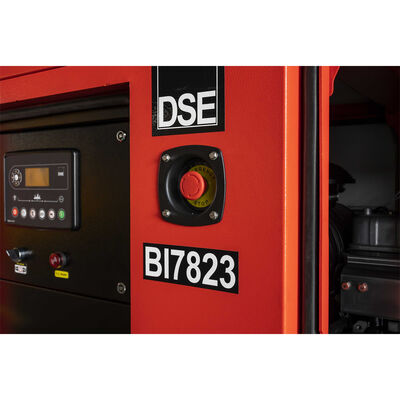

Control System Digital
Rated Voltage (V) 400/230 (According to customer requirements)
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load
PRP: Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.
ESP: The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Engine Details
Engine Model & Manufacturer 6M16G350/5 (BAUDOUIN)
N° of Cylinders / Valves 6/24
Cylinders Arrangement In line
Bore x Stroke (mm) 126 x 130
Displacement (L) 9.726
Thermodynamic Cycle Diesel 4 stroke
Firing Order 1-5-3-6-2-4
Mean Piston Speed (m/s) 6.5
BMEP @ ESP (Bar) 26.32
Cooling System Liquid (water + 50% antifreeze)
Injection System Direct
Fuel System Mechanical Pump
Aspiration Turbocharged and Aftercooled
Compression Ratio 17:1
Flywheel Housing SAE 1
Flywheel 14"
Rotation Viewed from Flywheel Counter Clockwise
Allowed Static Bending Moment 10800
N° of Teeth on Flywheel Ring Gear 136
Inertia of Flywheel (kg•m²) 1.84
Inertia of Crankshaft (kg•m²) 0.39
Emission Standard N/A
Overall Dimensions with Radiator (mm) 1982 x 1082 x 1310
Engine Dry Weight without Radiator (kg) 880
Engine Dry Weight with Radiator (kg) 1021
Engine Wet Weight with Radiator (kg) 1092
Alternator Specifications
Alternator Brand BOBIG
Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-314D
Rated Power 264kW/330kVA
Rated Voltage (V) 230V/400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%~+20%
Dimensions and Weight

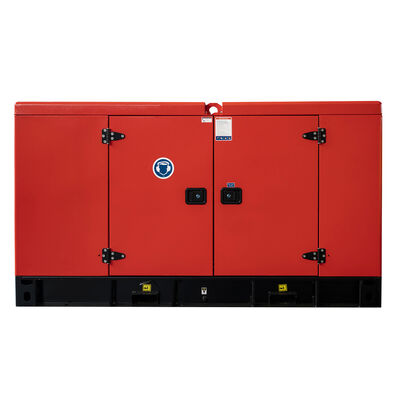

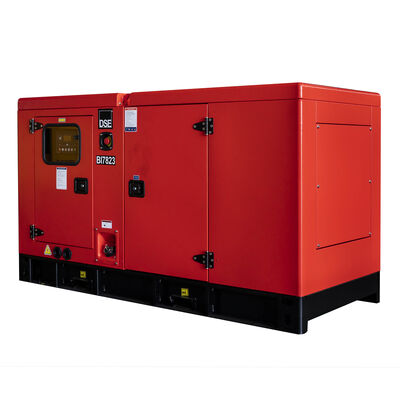

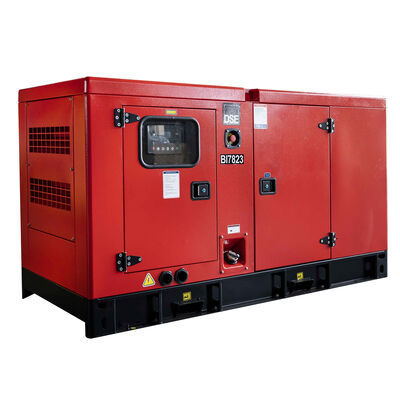

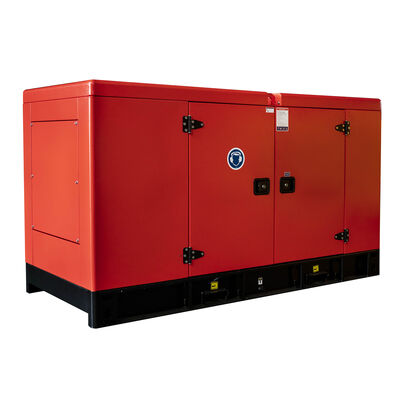

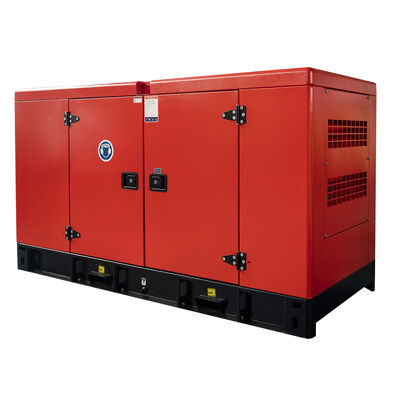

Model BBDA363 (Open type) BBDA363S (Silent type)
Length (mm) 2850 4200
Width (mm) 1050 1600
Height (mm) 1645 2250
Tank Capacity (L) 607 607
Applications
  • Industrial Use: Backup power source for factories ensuring continuous production during power outages
  • Commercial Buildings: Office buildings, shopping malls, and hotels for essential services
  • Residential Areas: Reliable power for communities with unstable power grids
Warranty and Service
BOBIG products have a guarantee for one year or 1000 hours (whichever comes first) from ex-factory date. During the guarantee period, we provide free easy-damageable spare parts caused by production or material quality issues.
Our professional after-sales service team is available 24/7 to provide technical support, maintenance, and repair services.
Company Information
We are an electrical machinery manufacturer with a total factory area of 10,000 square meters, including 1,000sqm standard construction area. With 160 employees (20 technicians), we produce gasoline generators, diesel generators 5-2000kVA, gas generators, pumps, and more. Our company has obtained ISO9000 Quality System Certification.
Factory
LOW NOISE PRICE WATER COOLING SILENT DIESEL GENERATORS SET BAUDOUIN ENGINE GENSET AVAILABLE 264KW 330KVA POWER GENERATOR 0 LOW NOISE PRICE WATER COOLING SILENT DIESEL GENERATORS SET BAUDOUIN ENGINE GENSET AVAILABLE 264KW 330KVA POWER GENERATOR 1
Workshop
LOW NOISE PRICE WATER COOLING SILENT DIESEL GENERATORS SET BAUDOUIN ENGINE GENSET AVAILABLE 264KW 330KVA POWER GENERATOR 2 LOW NOISE PRICE WATER COOLING SILENT DIESEL GENERATORS SET BAUDOUIN ENGINE GENSET AVAILABLE 264KW 330KVA POWER GENERATOR 3
Equipment
LOW NOISE PRICE WATER COOLING SILENT DIESEL GENERATORS SET BAUDOUIN ENGINE GENSET AVAILABLE 264KW 330KVA POWER GENERATOR 4 LOW NOISE PRICE WATER COOLING SILENT DIESEL GENERATORS SET BAUDOUIN ENGINE GENSET AVAILABLE 264KW 330KVA POWER GENERATOR 5
Production
LOW NOISE PRICE WATER COOLING SILENT DIESEL GENERATORS SET BAUDOUIN ENGINE GENSET AVAILABLE 264KW 330KVA POWER GENERATOR 6 LOW NOISE PRICE WATER COOLING SILENT DIESEL GENERATORS SET BAUDOUIN ENGINE GENSET AVAILABLE 264KW 330KVA POWER GENERATOR 7
Testing
LOW NOISE PRICE WATER COOLING SILENT DIESEL GENERATORS SET BAUDOUIN ENGINE GENSET AVAILABLE 264KW 330KVA POWER GENERATOR 8 LOW NOISE PRICE WATER COOLING SILENT DIESEL GENERATORS SET BAUDOUIN ENGINE GENSET AVAILABLE 264KW 330KVA POWER GENERATOR 9
Package
LOW NOISE PRICE WATER COOLING SILENT DIESEL GENERATORS SET BAUDOUIN ENGINE GENSET AVAILABLE 264KW 330KVA POWER GENERATOR 10 LOW NOISE PRICE WATER COOLING SILENT DIESEL GENERATORS SET BAUDOUIN ENGINE GENSET AVAILABLE 264KW 330KVA POWER GENERATOR 11
Frequently Asked Questions
What is your MOQ, payment method, delivery time?
MOQ: 1 set. Payment: 30% T/T deposit, 70% balance before delivery, or 100% L/C. Delivery: 10-15 working days after receiving deposit.
Which port do you often use when export?
Fuzhou port, Fujian province or as customer request.
Is there any spare parts you can provide along with generators?
We provide regular engine's air filter, water filter, fuel filter, oil filter for self-maintenance.
Can you offer parts to us if we need?
Yes, we can offer parts at any time, not limited to warranty period. Parts usually shipped within 3-5 days.
Can voltage, frequency, tank capacity, phase and color be customized?
Yes, all specifications can be customized according to your requirements.
What is your distribution policy?
We welcome distributors worldwide and can issue authority certificates and sign agreements accordingly.
