280KW Silent Diesel Genset Industrial Standby 3 Phase 380V 400V 50Hz Professional Weatherproof YTO Engine 24V DC

1
MOQ
USD 4500-7200
prezzo
280KW Silent Diesel Genset Industrial Standby 3 Phase 380V 400V 50Hz Professional Weatherproof YTO Engine 24V DC
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Evidenziare:

280KW silent diesel generator

,

industrial standby diesel genset

,

weatherproof 3 phase generator
Informazioni di base
Luogo di origine: Cina
Marca: YTO
Numero di modello: YM6S9L-DB
Termini di pagamento e spedizione
Imballaggi particolari: 386*140*200 cm
Tempi di consegna: 30 GIORNI LAVORATIVI
Termini di pagamento: L/C, T/T, D/P
Capacità di alimentazione: 500 pezzi al mese
Descrizione di prodotto

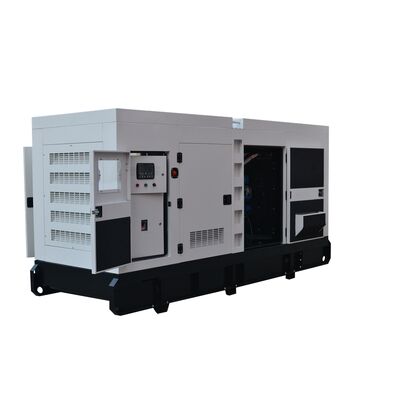

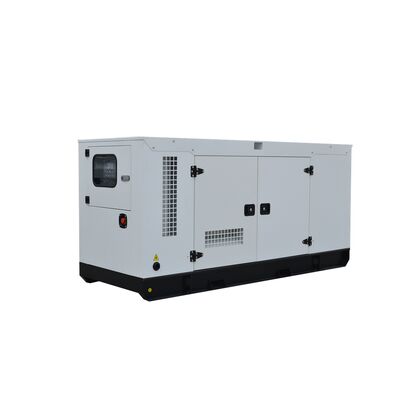

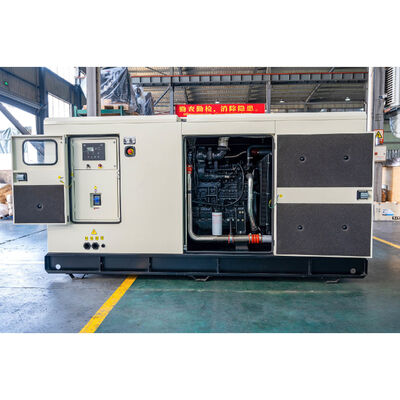

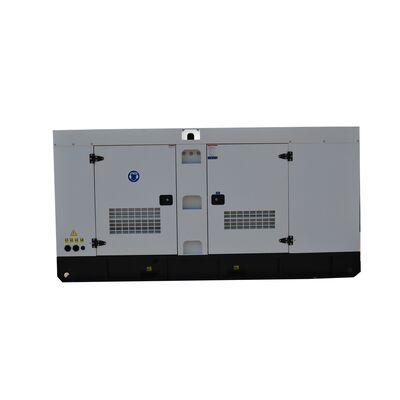

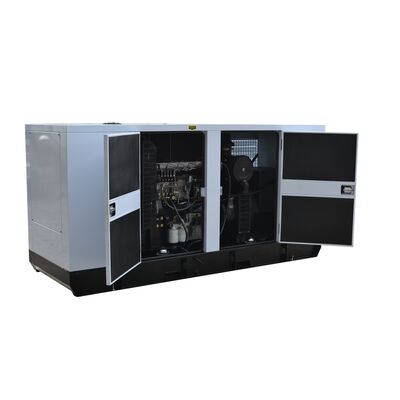

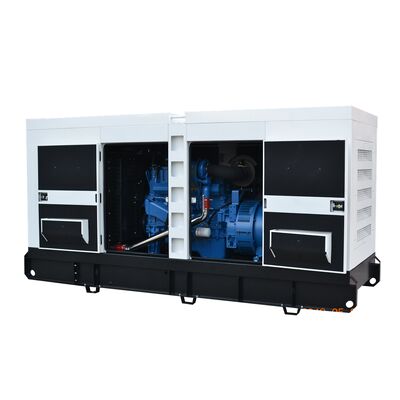

280KW Silent Diesel Genset - Industrial Standby Power

Our YTO YM6S9L-DB Diesel Generator is a high-performance, heavy-duty diesel generator set designed for reliable prime and standby power. Engineered with the renowned YTO engine, this 280kW unit is encased in a robust soundproof canopy, making it an ideal solution for applications requiring low noise operation without compromising on power and durability. Perfect for construction, industrial, commercial, and emergency backup applications.

280KW Silent Diesel Genset Industrial Standby 3 Phase 380V 400V 50Hz Professional Weatherproof YTO Engine 24V DC 0 280KW Silent Diesel Genset Industrial Standby 3 Phase 380V 400V 50Hz Professional Weatherproof YTO Engine 24V DC 1
Power Specifications
Specification Prime Power Standby Power
Rated Power (kVA) 350 385
Power Rating (kW) 280 308
Frequency (Hz) 50
Engine Model YM6S9L-DB
Engine Speed (RPM) 1500
Phase 3
Power Factor (PF) 0.8
Control System Digital
Rated Voltage (V) 400/230 (Customizable)
Fuel Tank Capacity Operating Time ≥ 8 hours @ 75% load
Power Rating Definitions

PRP (Prime Power): Available for unlimited annual hours in variable load applications according to GB/T2820-97 standards. Includes 10% overload capability for 1 hour within 12 hours of operation.

ESP (Standby Power): Applicable for supplying emergency power during utility power interruptions. No overload, utility parallel, or negotiated outage operation capability available at this rating.

Dimensions and Weight
Model BYT385 (Open Type) BYT385S (Silent Type)
Length (L) mm 3100 3860
Width (W) mm 1050 1400
Height (H) mm 2100 2000
Tank Capacity (L) 644 644
Engine Specifications
Engine Model & Manufacturer YM6S9L-DB (YTO)
Number of Cylinders 6
Cylinder Arrangement In-line
Cycle 4 stroke, compression ignition
Air Aspiration Method Turbocharged with air to air cooler
Cooling Medium Liquid
Bore 126 mm
Stroke 155 mm
Compression Ratio 17.0:1
Cubic Capacity 11.596 L
Dry Engine Weight 1100 kg
Dimension (L×W×H) 1229×1813×965 mm
Rotation Direction Anti-clockwise viewed on flywheel
Governed Engine Speed 1500 RPM
Firing Order 1-5-3-6-2-4 (1 cylinder furthest from flywheel)
Steady State Speed Stability ≤ 3% at constant load
Alternator Specifications
Alternator Brand BOBIG
Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO., LTD
Alternator Model BW-314ES
Rated Power 280kW / 350kVA
Rated Voltage 230V / 400V
Rated Frequency 50Hz
Connecting Type 3 Phase and 4 Wire
Number of Bearings 1
Protection Grade IP23
Altitude ≤ 1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Voltage Regulation, Steady State ≤ ±1%
Specific Fuel Consumption ≤ 205g/kW·h
Control Panel - DSE 6120
Key Benefits
  • Automatically transfers between mains (utility) and generator
  • Hours counter for accurate monitoring and maintenance scheduling
  • User-friendly set-up and button layout for ease of use
  • Multiple parameters monitored & displayed simultaneously
  • Configurable to suit wide range of applications
  • PLC editor for user configurable functions
280KW Silent Diesel Genset Industrial Standby 3 Phase 380V 400V 50Hz Professional Weatherproof YTO Engine 24V DC 2
Key Features
  • 4-line back-lit LCD text display with multiple languages
  • Five-key menu navigation with LCD alarm indication
  • Customizable power-up text and screen images
  • DSENet® expansion compatibility
  • Data logging facility and internal PLC editor
  • 3-phase generator and mains sensing and protection
  • Automatic load transfer control
  • Generator current and power monitoring (kW, kvar, kVA, pf)
  • kW overload alarm and over current protection
  • Breaker control via fascia buttons
  • Real time clock and engine run-time scheduler
  • IP65 rating (with optional gasket) for water resistance
Available Options
Engine Alternator Fuel System Generating Set
Water Jacket Preheater PMG excitation 12/24 hour base tank Deepsea, ComAp, Smartgen controllers
Oil Preheater Space heater Bunded fuel tank Trailer
Oil manual pump Winding temperature measuring External fuel tank Tools with the machine
Automatic fuel feeding
Switch between external tank and base tank
280KW Silent Diesel Genset Industrial Standby 3 Phase 380V 400V 50Hz Professional Weatherproof YTO Engine 24V DC 3 280KW Silent Diesel Genset Industrial Standby 3 Phase 380V 400V 50Hz Professional Weatherproof YTO Engine 24V DC 4 280KW Silent Diesel Genset Industrial Standby 3 Phase 380V 400V 50Hz Professional Weatherproof YTO Engine 24V DC 5
