Factory Price Open/Silent Type QUANCHAI Diesel Generator 8KW/10KVA Power Supply Water Cooling

1SET
MOQ
2139-2919USD
prezzo
Factory Price Open/Silent Type QUANCHAI Diesel Generator 8KW/10KVA Power Supply Water Cooling
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Velocità: 1500 giri/min
Frequenza: 50/60Hz
Potenza nominale: Da 5KW a 2000KW
Tipo di uscita: CA trifase
Tipo: Aperto o silenzioso (super silenzioso)
Colore: Secondo le vostre esigenze, personalizzato
Evidenziare:

QUANCHAI silent diesel generator 8KW

,

water cooling diesel generator 10KVA

,

open type diesel generator with warranty
Informazioni di base
Luogo di origine: Cina
Marca: QUANCHAI
Numero di modello: QC380D
Termini di pagamento e spedizione
Imballaggi particolari: compensato
Tempi di consegna: 40 giorni lavorativi
Termini di pagamento: L/C, T/T
Capacità di alimentazione: 50 set al mese
Descrizione di prodotto
Factory Price Open/Silent Type QUANCHAI Diesel Generator 8KW/10KVA Power Supply Water Cooling
Product Overview

High quality water cooling QUANCHAI diesel generator available in both open and silent configurations to meet diverse operational requirements.

Key Features
  • Equipped with famous brushless alternator brands: Leroy Somer, Marathon, BOBIG, Mecc Alte
  • 50°C radiator with fan for optimal engine cooling during extended operation
  • Advanced control systems including generator set control, ATS system, remote control, and parallel operation
  • High-quality steel canopy construction (2MM to 6MM thickness)
  • High-density sound-absorbing material for effective sound insulation and fireproofing
  • 12V/24V DC battery with charger and connecting wires
  • 10-12 hours fuel tank with fuel indicator for continuous operation
  • High protection class control box (IP55) with waterproofing, electric leakage protection, and breaker
  • Turn-back type air inflow & outlet design reduces noise and improves engine efficiency
  • Practical design with bottom holes for forklift, water outlet, and oil outlet for easy maintenance
  • Double open doors on both sides for comprehensive engine and alternator access
  • Available in silent, super silent, soundproof, trailer type, and container type configurations
  • Compliance with major standards: GB/T2820, ISO8528, IEC34, CE, EPA Tier4
Technical Specifications
General Information Prime Power Standby Power
Rated Power (kVA) 10 11
Power Rating (kW) 8 9
Frequency (Hz) 50
Engine Model QC380D
Engine Speed (RPM) 1500
Phase 3
PF 0.8
Control System Digital
Rated Voltage (V) 400/230
Fuel Tank Capacity Operating Time ≥ 8h @ 75% load

PRP (Prime Power): Available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97; A 10% overload capability is available for a period of 1 hour within a 12-hour of operation.

ESP (Standby Power): Applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.

Dimensions and Weight
Model BQ11 (Open Type) BQ11S (Silent Type)
Length (L) mm 1150 1750
Width (W) mm 610 850
Height (H) mm 1100 1050
Tank Capacity (L) 18 18
Engine Specifications
Engine Model & Manufacturer QC380D (QUANCHAI)
Model QC380D
Bore*Stroke (mm) 80×90
Total Displacement (L) 1.357
Rated Power (kw) 9 | 11
Standby Power (kw) 10 | 12
Rated Speed (r/min) 1500 | 1800
Rated Power For Generator Sets (kva) 9 | 11
Standby Power For Generator Sets (kva) 10 | 12
Rated Power For Generator Sets (kw) 7.2 | 8.8
Standby Power For Generator Sets (kw) 8 | 10
Steady State Speed Governing Rate % ≤5
Max Speed On No Load (r/min) 1575
Min Speed On No Load (r/min) 800
Specific Fuel Consumption Rate At Max. Speed (g/kW*h) ≤265
Net Weight (kg) 165
Dimension (L*W*H) (mm) 627×545×610 (WITHOUT AIR FILTER AND RADIATOR)
Rotation (Viewed From Flywheel) COUNTER CLOCKWISE
Flywheel House Sizing SAE4＃
Flywheel House Sizing SAE7.5″
Number Of Teeth Of The Flywheel 115
Alternator Specifications
Alternator Brand BOBIG
Alternator Manufacturer FUJIAN BOBIG ELECTRIC MACHINERY CO.,LTD
Alternator Model BW-164B
Alternator Rated Power 8kw/10kva
Rated Voltage (V) 230v/400v
Rated Frequency 50hz
Connecting Type 3 Phase and 4 W
Number of Bearing 1
Protection Grade IP23
Altitude ≤1000m
Exciter Type Brushless, Self-exciting, AVR automatic voltage regulating, 100% Copper
Insulation Class H class
Telephone Influence Factor (TIF) ≤50
THF ≤2%
Voltage Regulation, Steady State ≤±1%
Transient State Voltage ≤-15%～+20%
Standard Components
  • Heavy duty diesel engine
  • Starter battery (with lead acid) including rack and cables
  • Anti-vibration mount
  • Flexible fuel connection hoses
  • Replaceable fuel filter, oil filter & air filter
  • Exhaust silencer and bellows
  • Cooling radiator and fan
  • Operation manuals and circuit diagram documents
Product Images

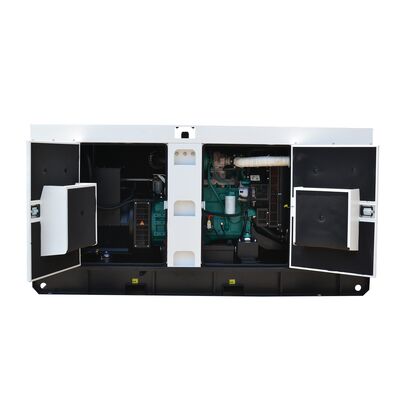

Factory Price Open/Silent Type QUANCHAI Diesel Generator 8KW/10KVA Power Supply Water Cooling 0
Front View

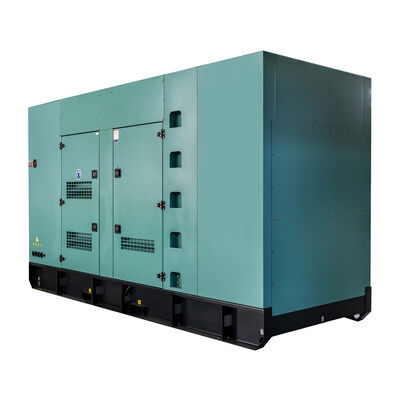

Factory Price Open/Silent Type QUANCHAI Diesel Generator 8KW/10KVA Power Supply Water Cooling 1
Side View

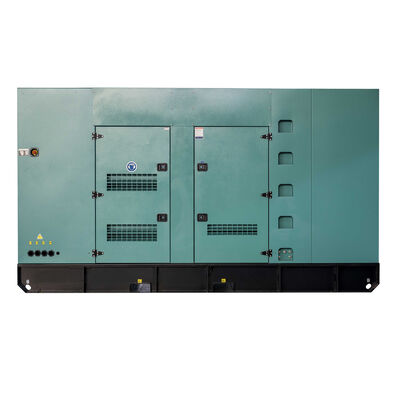

Factory Price Open/Silent Type QUANCHAI Diesel Generator 8KW/10KVA Power Supply Water Cooling 2
Control Panel

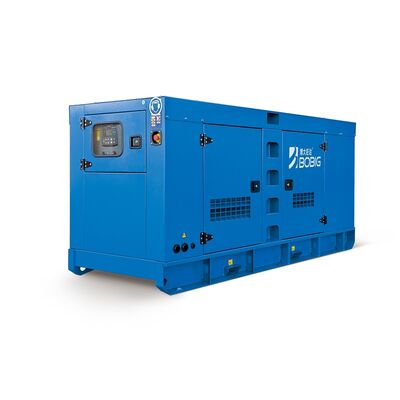

Factory Price Open/Silent Type QUANCHAI Diesel Generator 8KW/10KVA Power Supply Water Cooling 3
Engine Detail
Factory Price Open/Silent Type QUANCHAI Diesel Generator 8KW/10KVA Power Supply Water Cooling 4
Alternator View
Factory Price Open/Silent Type QUANCHAI Diesel Generator 8KW/10KVA Power Supply Water Cooling 5
Silent Type Exterior
Factory Price Open/Silent Type QUANCHAI Diesel Generator 8KW/10KVA Power Supply Water Cooling 6
Internal Components
Factory Price Open/Silent Type QUANCHAI Diesel Generator 8KW/10KVA Power Supply Water Cooling 7
Cooling System
Factory Price Open/Silent Type QUANCHAI Diesel Generator 8KW/10KVA Power Supply Water Cooling 8
Fuel System
Factory Price Open/Silent Type QUANCHAI Diesel Generator 8KW/10KVA Power Supply Water Cooling 9
Electrical Connections
Factory Price Open/Silent Type QUANCHAI Diesel Generator 8KW/10KVA Power Supply Water Cooling 10
Full Assembly
Factory Price Open/Silent Type QUANCHAI Diesel Generator 8KW/10KVA Power Supply Water Cooling 11
Quality Inspection
Specifications and illustrations are subject to revision without notice.
